404/5 PZ404/5CR

Pye (N.Z.) Ltd.; Waihi

Data
Forum
Pictures
Collections

  • Year
  • 1956
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 349868

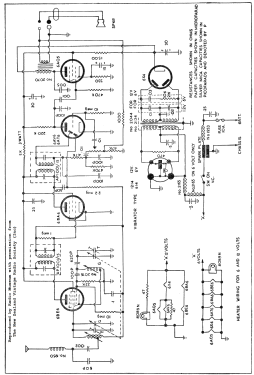

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 or 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 404/5 PZ404/5CR - Pye N.Z. Ltd.; Waihi
  • Shape
  • Chassis only or for «building in»
  • Notes

  • PYE MODEL 404/5. The big performer made especially for the smaller car. lt is a 2-unit model, compact, neat, easy to install; simple to tune with a large clear dial. Its superb 5-valve performance does credit to any car, big or small. £26/10/-

    Available in 6 or 12V versions.

  • Price in first year of sale
  • 26.50 NZ £
  • Mentioned in
  • -- Original prospect or advert (Press 26 October 1956 Page 18)
  • Literature/Schematics (1)
  • -- Original prospect or advert (Press 1 March 1957 Page 16)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
