Atlantis 512

Pye (N.Z.) Ltd.; Waihi

Data
Forum
Pictures
Collections

  • Year
  • 1968 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 356868

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 18
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 230 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 8 inch = 20.3 cm
  • Power out
  • 14 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org

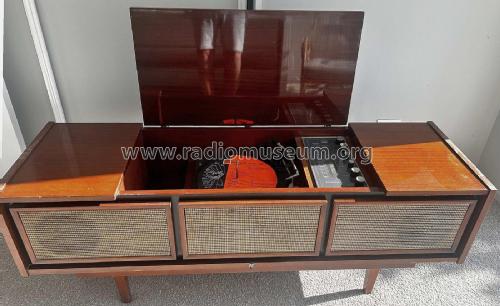

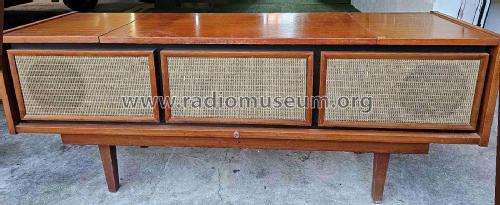

  • Model: Atlantis 512 - Pye N.Z. Ltd.; Waihi
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 54 x 22 x 16 inch / 1372 x 559 x 406 mm
  • Notes

  • PYE proudly presents a new standard of elegance in contemporary cabinetry. Atlantis P512: an inspired blend of engineering achievement and fine furniture craftmanship. Of selected rich natural mahogany (dark or light), combined with the finest stereo components make this superb new stereogram a desirable addition to any home and connoisseur of good music. The 18. transistor and 6 diode "solid-state" chassis incorporate the latest technological advances in stereophonic componentry, giving a total of 14 Watts undistorted output. The extra large heavy-duty 8" full fidelity speakers are totally encased in Flexafoam acöustic damping pads, this improves the Bass Response and provides an air of "liveness" and purity of reproduction. The precision-designed "Instrument finish" graphite grey, white, and silver control panel includes separate bass, treble, and stereo balance controls, a tape input and output, an individual earphone connection, and a tuning meter for positive trouble-free station selection. Situated on the bottom rail is an indicator bezel for visual On/0ff power indication. The gracefully styled Garrard 3000 automatic turntable is laboratory designed so that tracking is so light record wear is reduced to a minimum, a major consideration to people who value thei records. PYE Atlantis realistically priced within your budget at only $249.95 (£124/19/6),

  • Price in first year of sale
  • 249.95 NZ$
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
