• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 353368

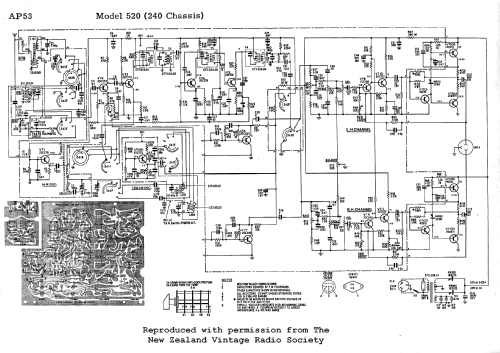

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 230 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Carlsberg P520 Ch=240 - Pye N.Z. Ltd.; Waihi

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 44 x 24.5 x 16 inch / 1118 x 622 x 406 mm

• Notes

• PYE P520 Ch=240 CARLSBERG. Solid State 17 transistor console lowboy stereogram.

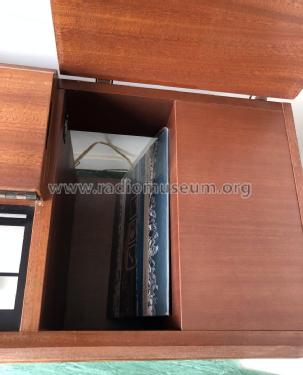

  Elegant mahogany veneer cabinet. PYE Copperplate solid state chassis. Twin-matched, fully enclosed speakers, 40 music watts performance for a full, rich sound. 4peed Garrard auto changer. Broadcast, short wave, trawler bands.

• Price in first year of sale
• 320.00 NZ$

• Mentioned in
• -- Original prospect or advert (Press 11 December 1969 Page 9)

• Literature/Schematics (1)
• -- Original prospect or advert (Press 21 July 1970 Page 11)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
