• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 346083

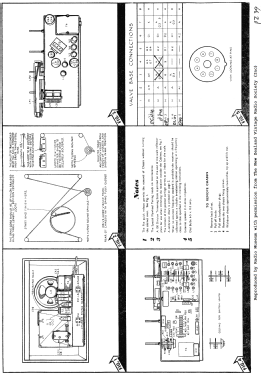

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Model G PZ40 - Pye N.Z. Ltd.; Waihi

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 500 x 300 x 200 mm / 19.7 x 11.8 x 7.9 inch

• Notes

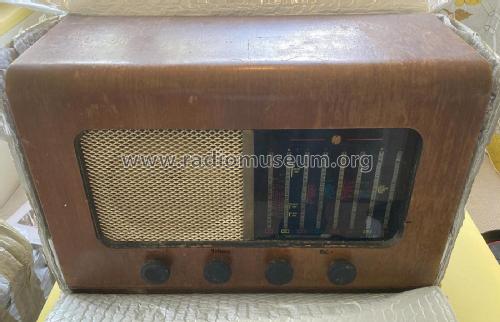

• 5 valve superhet 8 band full bandspread mantel receiver in a walnut cabinet.

  The bands covered on this model are; broadcast, "MSW" 3.2 to 8 MHz and six band spread positions covering the 31, 25, 19, 16, 13 and 11 metre bands.

  See also PYE PZ39 plastic cabinet version.

• Price in first year of sale
• 34.00 NZ Guineas

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
