• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 343306

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF41 ECH42 EF41 EBC41 EM34 EL41 EZ40

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: Model H PZ60 - Pye N.Z. Ltd.; Waihi

• Shape
• Tablemodel, with any shape - general.

• Notes

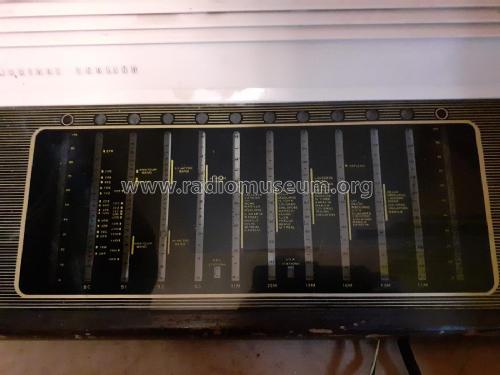

• 7-Valve (including magic eye) superhet with RF stage 10 band bandspread table model receiver.

  Mahogany cabinet with cream moulded front.

  Fully tropicalised.

  See also UK Model PE60.

• Price in first year of sale
• 39.75 NZ £

• Mentioned in
• -- Original prospect or advert (Press 22 April 1955 Page 15)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
