Model R PZ32QTG
Pye (N.Z.) Ltd.; Waihi
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Pye (N.Z.) Ltd.; Waihi
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 349801
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.2 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Model R PZ32QTG - Pye N.Z. Ltd.; Waihi
- Shape
- Tablemodel, with any shape - general.
- Notes
-
PYE MODEL R.
The perfect Portable Padiogram, strongly constructed wooden cabinet finished in art leather in either blue with dark blue fittings or beige, with matching fittings and a cream interior. 3-speed record player. £38/10/-
See also NZ Model R PZ32W Wooden Cabinet and GB P32QTG.
- Price in first year of sale
- 38.50 NZ £
- Mentioned in
- -- Original prospect or advert (Press 27 July 1956 Page 8)

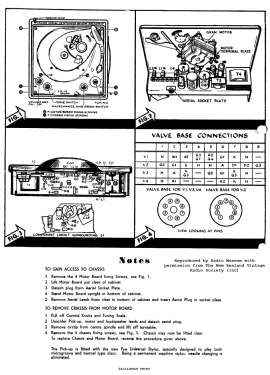

- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
