• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 274389

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM81 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: PZ101 - Pye N.Z. Ltd.; Waihi

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 12.5 x 7.5 inch / 406 x 318 x 191 mm

• Notes

• 6-Valve (including magic eye) superhet table model receiver with mahogany finish.

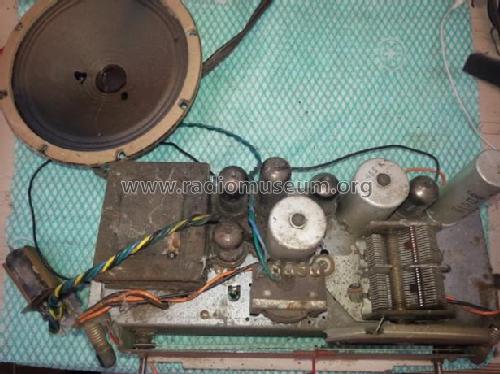

  Similar to the English Pye PE101 in appearance, and chassis layout / circuit is similar to the Pye_PZ45, except with the addition of a tone control and magic eye.

• Price in first year of sale
• 28.38 NZ £

• Author
• Model page created by Steve Dunford. See "Data change" for further contributors.
