• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 343605

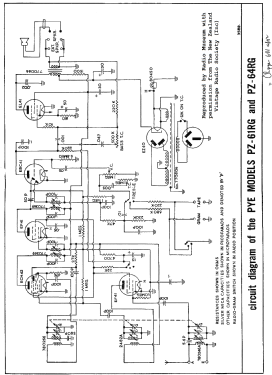

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF41 ECH42 EF41 EBC41 EL41 EZ40

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: PZ64RG - Pye N.Z. Ltd.; Waihi

• Shape
• Console with any shape - in general

• Notes

• 6-Valve superhet with RF stage broadcast (MW) console receiver in oak cabinet.

  See also PYE PZ61RG and Clipper 601RG.

• Price in first year of sale
• 79.50 NZ £

• Mentioned in
• -- Original prospect or advert (Press 2 April 1957 Page 9)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
