• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 346084

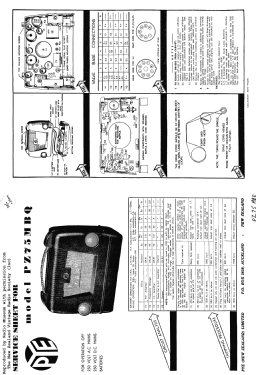

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• DF91 DK40 DF91 DAF91 DL94

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 230 or 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: PZ75MBQ - Pye N.Z. Ltd.; Waihi

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• 5 valve plus metal rectifier superhet with RF stage broadcast (MW) portable AC/DC mains plus battery receiver.

  Powered by 230 volt AC or DC mains or 90V No.490P & 9V No.701 batteries.



• Price in first year of sale
• 24.88 NZ £

• Mentioned in
• -- Original prospect or advert (Press 21 January 1954 Page 10)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.

• Other Models

• Here you find 73 models, 70 with images and 54 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Pye (N.Z.) Ltd.; Waihi
