• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 333569

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF89 EBC81 EL84 EM81 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

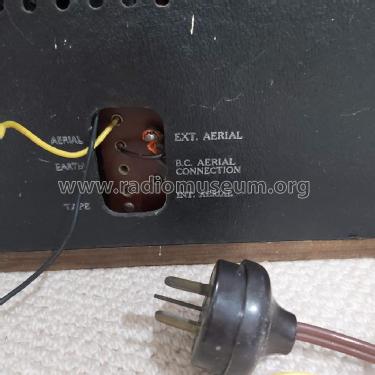

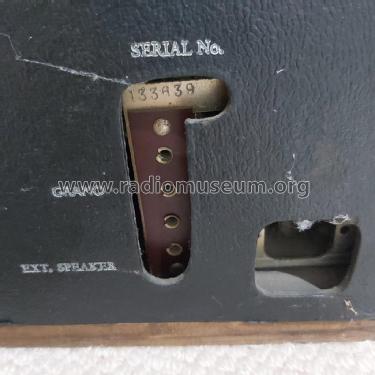

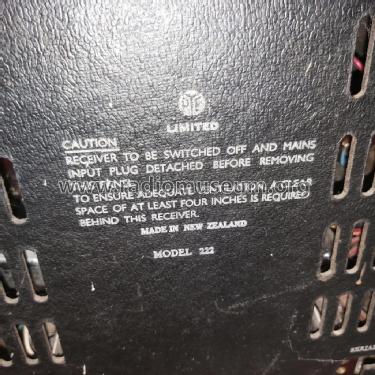

• Model: Printed Circuit PZ-222 - Pye N.Z. Ltd.; Waihi

• Shape

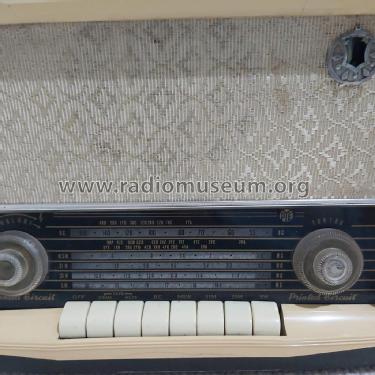

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 19.25 x 13 x 7.75 inch / 489 x 330 x 197 mm

• Notes

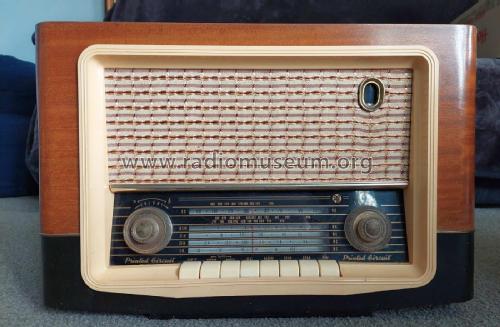

• 6-valve 5-wave bandspread mantel features printed circuit reliability, exceptional tone. Piano key switching gives positive, accurate waveband selection. Two-tone straight-grained walnut veneers, ornamental gilt fittings and contrasting cream moulded escutcheon.

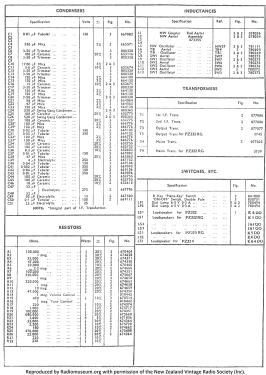

  Schematic applies to Models PZ222RG, PZ224 & PZ223RG. Also PZ230 Messanger of 1961.

• Price in first year of sale
• 39.75 NZ £

• Mentioned in
• -- Original prospect or advert (Press 16 July 1958 Page 6)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
