• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 355391

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EZ40

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

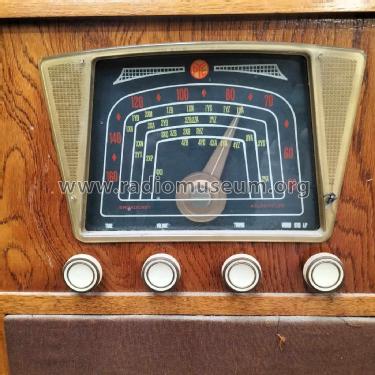

• Model: Radiogram PZ57RG - Pye N.Z. Ltd.; Waihi

• Shape
• Console with any shape - in general

• Notes

• PYE PZ57RG

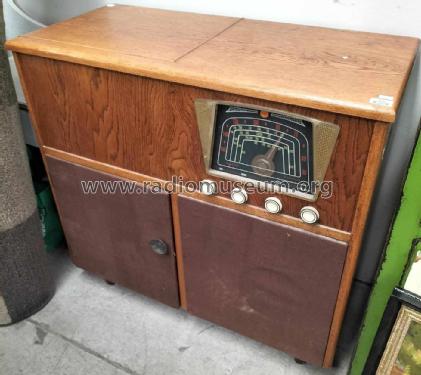

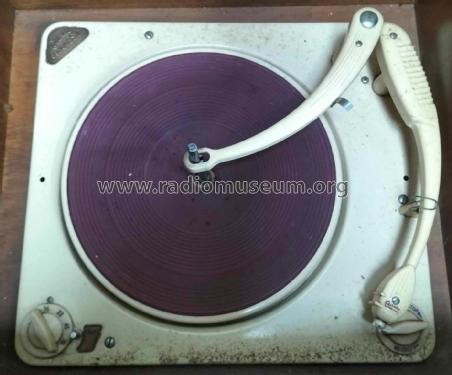

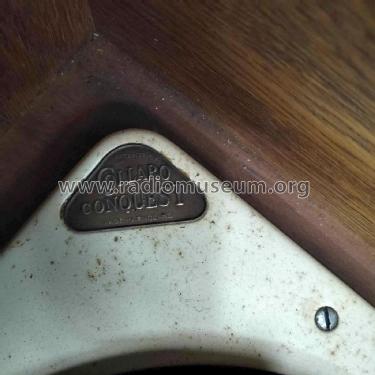

  5-valve broadcast radiogram with Collaro TC-340-E "Conquest" Revised record changer, 8" K8Q0, and 5" K5D0 speakers.

  See also PZ75TR which includes a Tape Recorder.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
