• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 346887

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF89 EBC81 EL84 EZ80

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

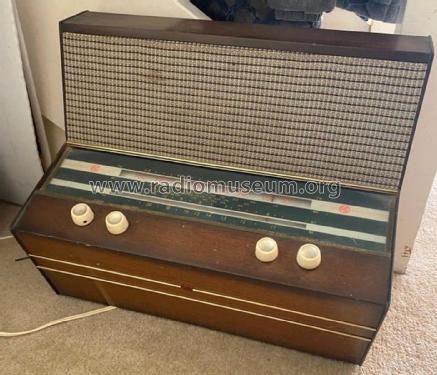

• Model: Ricardo PZ108 - Pye N.Z. Ltd.; Waihi

• Shape
• Tablemodel, with any shape - general.

• Notes

• 5 valve 4 band superhet mantel receiver with broadcast (MW), 2 shortwave and Trawler bands.

  See also Clipper 6M8.

• Price in first year of sale
• 35.98 NZ £

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
