• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 349690

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF89 ECL86 ECL86 EZ80

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

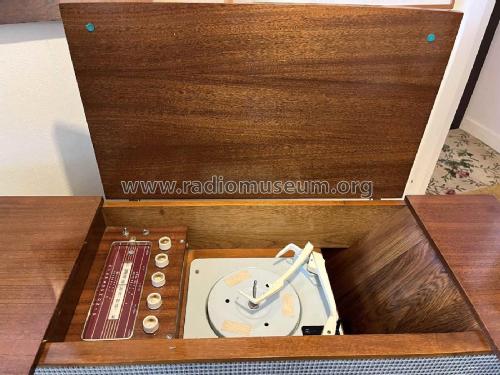

• Model: Stereo 100 100SG - Pye N.Z. Ltd.; Waihi

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• PYE STEREO 100

  EYE APPEAL... surely the most handsomely styled stereo of all ... Iong Iow and in tune with the times. Choice of Mahogany or Walnut.

  EAR APPEAL... twin 8" speakers...9 valve performance... plus PYE "know-how" brings a new concept of crystal clear stereophonic sound. The PYE developed printed circuit ensures many years of trouble free performance. 4-speed record changer (automatic or manual). £79/19/6.

• Price in first year of sale
• 79.98 NZ £

• Mentioned in
• -- Original prospect or advert (Press 14 June 1962 Page 6)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
