Qianxiao 前哨 J401
Yantai 烟台无线电厂 Yantai Radio Factory; Yantai
- Country
- People's Republic of China
- Manufacturer / Brand
- Yantai 烟台无线电厂 Yantai Radio Factory; Yantai
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174476

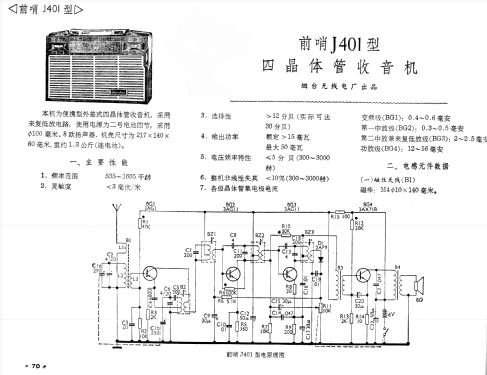

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; Reflex
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 x 1.5 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Qianxiao 前哨 J401 - Yantai 烟台无线电厂 Yantai
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 217 x 140 x 60 mm / 8.5 x 5.5 x 2.4 inch
- Literature/Schematics (1)

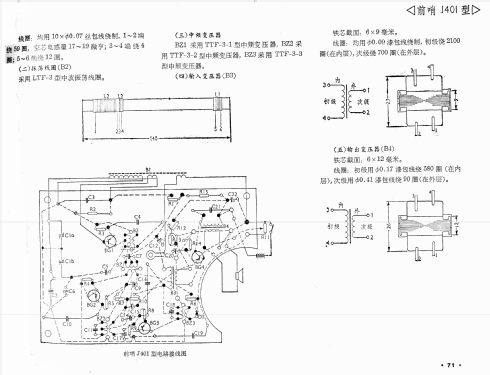

- 01-Transistor Radio Manual 1972, 2nd Ed. 2nd Print 1983 (page 70.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
