Telefonanlage Maxima 1500
Quante, Wilhelm; Wuppertal-Elberfeld
- Country
- Germany
- Manufacturer / Brand
- Quante, Wilhelm; Wuppertal-Elberfeld
- Year
- 1992 ??
- Category
- Telephony - wire and wireless
- Radiomuseum.org ID
- 357328
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

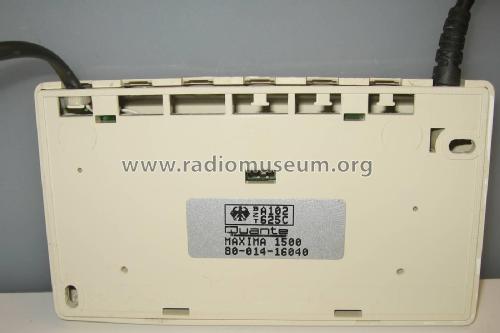

- Model: Telefonanlage Maxima 1500 - Quante, Wilhelm; Wuppertal-
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 142 x 80 x 39 mm / 5.6 x 3.1 x 1.5 inch
- Notes
-
Telefonanlage für den Anschluss von max. 4 Endgeräten und 2 Tonruf-Zweitgeräten (TZG).
Wandmontage, fest montiertes Steckernetzteil (Typ FW 3303), Leistungsaufnahme: 12 VA.
Impulswahlverfahren (IWV).Automatische Aufschaltung der Amtsleitung auf Sprechstelle 1 bei Netzausfall.
- Net weight (2.2 lb = 1 kg)
- 0.664 kg / 1 lb 7.4 oz (1.463 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
