HiFi-Stereo-Kompaktanlage VTCF843
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1974 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191314

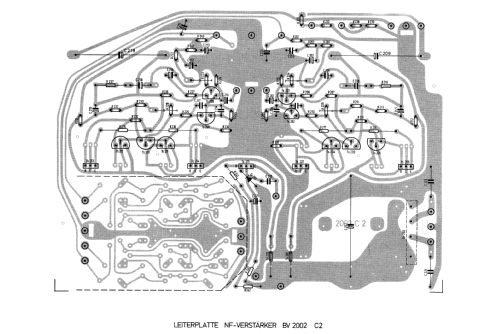

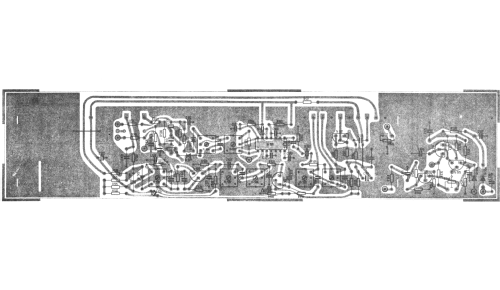

Aus Quelle-Servicemanual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 35
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 50 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: HiFi-Stereo-Kompaktanlage VTCF843 - QUELLE GmbH Universum; Fürth
- Shape
- Tablemodel, low profile (big size).
- Notes

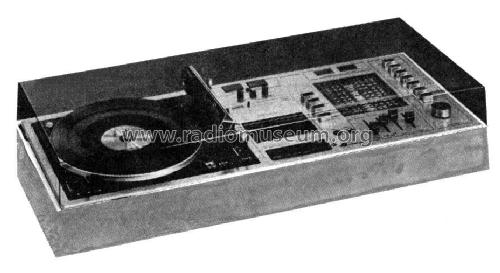

- HiFi-Stereo-Kompaktanlage mit Cassetten-Recorder und PE-Plattenwechsler PE3010.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
