• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 349203

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 or EAF801 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Musikschrank MT 957 Art.Nr. 05968 Ch= Weimar 5140B - QUELLE GmbH Universum; Fürth

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1040 x 740 x 380 mm / 40.9 x 29.1 x 15 inch

• Notes

• Hersteller des Rundfunk-Chassis ist Stern-Radio Sonneberg, siehe Weimar 5140B

  Philips Plattenwechsler.

  Rückwanddruck zeigt Röhre EBF89, der Schaltplan dagegen die Type EAF801.

• Mentioned in

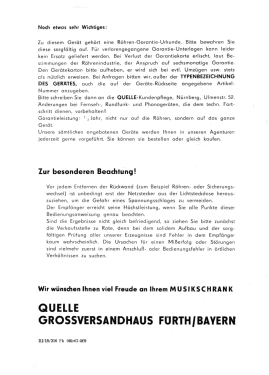

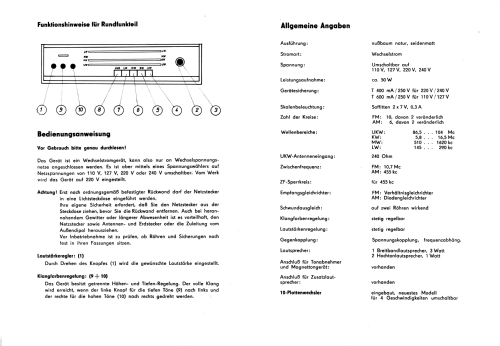

• - - Manufacturers Literature

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Florian Henkel. See "Data change" for further contributors.
