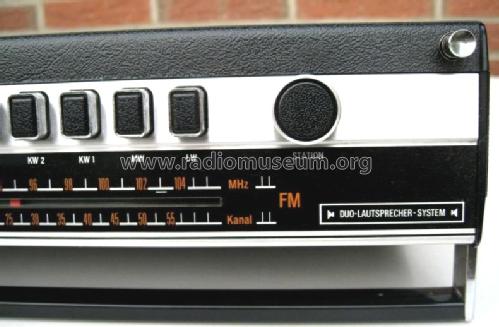

Senator electronic TR331
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1984
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165006
Titelbild der Bedienungsanleitung
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220; 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Senator electronic TR331 - QUELLE GmbH Universum; Fürth
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 350 x 227 x 98 mm / 13.8 x 8.9 x 3.9 inch
- Net weight (2.2 lb = 1 kg)
- 3.1 kg / 6 lb 13.3 oz (6.828 lb)
- Price in first year of sale
- 100.00 DM
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Heinz Hirsch † 28.2.10. See "Data change" for further contributors.
