• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158062

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• 2SA235 2SA234 2SA350 2SA12 2SB75 2SB156

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Special material, described in the notes.

• from Radiomuseum.org

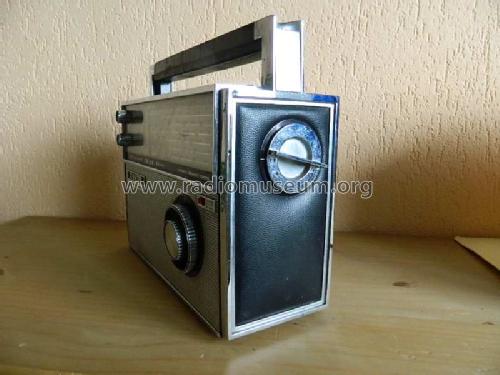

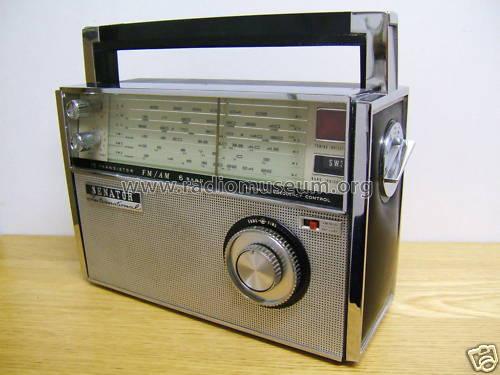

• Model: Senator - International Art.Nr.09298 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 190 x 105 mm / 11.4 x 7.5 x 4.1 inch

• Notes

• Metallgehäuse mit Kunstleder überzogen, die Ferritantenne ist im Tragegriff eingebaut.
  Jeder Transistortyp ist nur einmal gelistet, zusätzlich enthält das Radio 4 Dioden.

  Other similar radios:

  • Texoma Baylor 15 Transistor FM/AM 6 Band SD15-6
  • Silver Plata Space-Master 15AF-29
  • Silver Space Master 15AF-29

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
