• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 224596

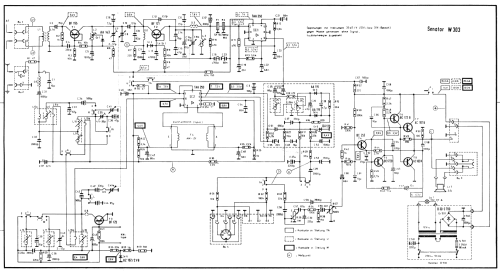

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• B30C700 AA119 AA119 AC187 AC188 BA170 BC172 BC172 BC253 BF195 BF121 TAA293 TAA350

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Senator Volltransistor W 303 Artikel Nr. 05793 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 566 x 130 x 150 mm / 22.3 x 5.1 x 5.9 inch

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Author
• Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
