Simonetta 4 Band Volltransistor
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1970 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336934
Japan.
Patented Japan.
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / C: 4 × 1.5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Simonetta 4 Band Volltransistor - QUELLE GmbH Universum; Fürth
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 170 x 75 mm / 10.6 x 6.7 x 3 inch
- Notes
-
Anschlüsse für Kopfhörer, Tonband/Plattenspieler, externe Stromversorgung.

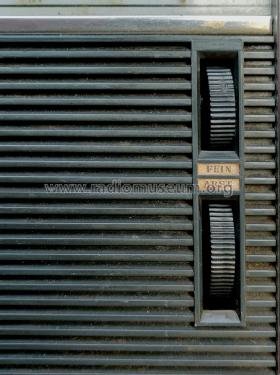

Feinabstimmung für KW, Tonschalter. UKW-Bereich 87.5 - 104.7 MHz
Connectors for earphones, DIN for tape/record player, external 6 VDC power supply. 2-position tone control switch.
FM range: UKW 87.5 - 104.7 MHz
Similar radio, Perla.
Made in Romania.
- Net weight (2.2 lb = 1 kg)
- 1.6 kg / 3 lb 8.4 oz (3.524 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
