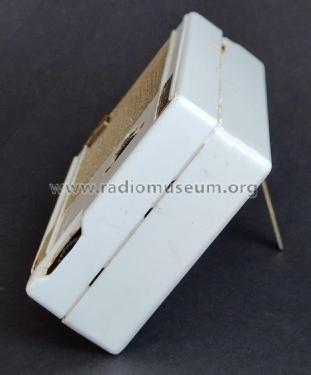

Taschen-7-Transistor Simonetta Bestell-Nummer 09233
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 85052
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 2 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Power out
- 0.05 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Taschen-7-Transistor Simonetta Bestell-Nummer 09233 - QUELLE GmbH Universum; Fürth
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 95 x 61 x 28 mm / 3.7 x 2.4 x 1.1 inch
- Notes
- Der Taschenempfänger Simonetta 7 ist die Exportausführung des Mikki T120 von Stern Radio Berlin.
Als Transistoren sind OC882, 2 x OC871, 2 x OC870 und 2 x OC821 eingebaut.
Je nach Fertigungszeitraum kann die Bestückung unterschiedlich sein.
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Price in first year of sale
- 30.00 DM
- Source of data
- -- Schematic / Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
