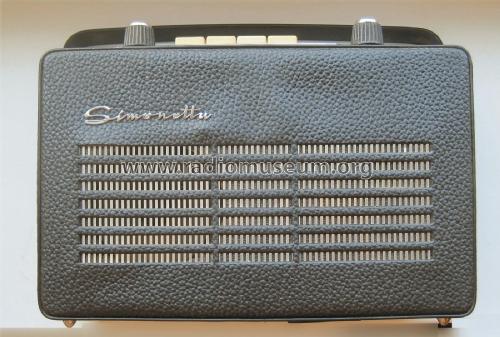

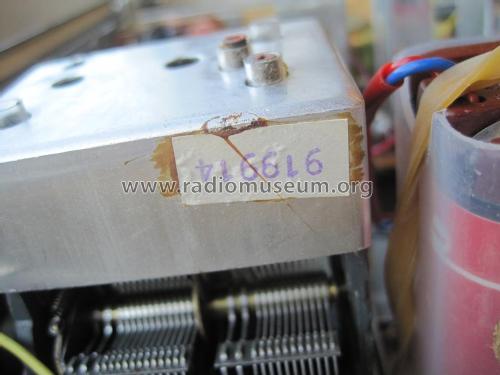

Simonetta - Autokoffer Luxus BT 952 Art.-Nr. 09229 Ch= 919914

• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 311228

• Picture
• Schematics

Previous Next

Previous Next

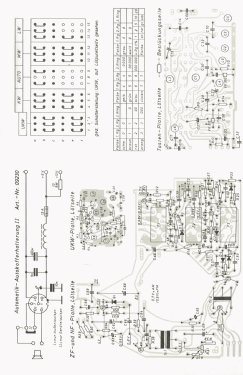

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 OC615M AF136 AF138 2SA77 2SB54 2SB54 AC117 AC117 1N60 1N60 RL43g OA172 OA172

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 2 x 4,5 / Auto 6; 12 / ext. 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Simonetta - Autokoffer Luxus BT 952 Art.-Nr. 09229 Ch= 919914 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 185 x 90 mm / 11 x 7.3 x 3.5 inch

• Notes

• 5 Tasten: LW MW Auto KW UKW
  Speisung über 2 Trockenbatterien je 4,5 Volt oder im Kfz über die Autobatterie (6 oder 12 Volt) oder externes Netzteil mit 9 Volt.
  Herstellung:
  Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart für Quelle Versand GmbH, Fürth

  Siehe auch Parallelmodelle Südfunk 919914 und Neckermann 919914

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)
