• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158118

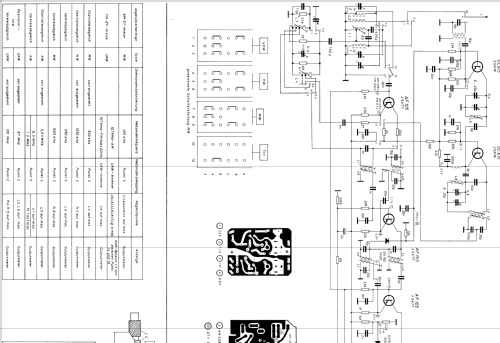

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• OC615 OC615 AF105 AF105 AF105 OC604 OC604 OC74 OC74 OA160 OA160 OA160 OA172 OA172 E25C25

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.8 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Simonetta BT932 Art.-Nr.08532 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 180 x 90 mm / 9.1 x 7.1 x 3.5 inch

• Notes

• Auch lieferbar mit LW MW UKW als Quelle BT931, Best.-Nr. 08526 zum Preis von DM 178,-
  Siehe auch Modell: Simonetta 91093 Art.-Nr. 08526 & 08527

  Hersteller: Südfunk-Apparatebau Dr. Ott Stuttgart, für Quelle GmbH.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Price in first year of sale
• 178.00 DM

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
