Simonetta GR-920
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 137579

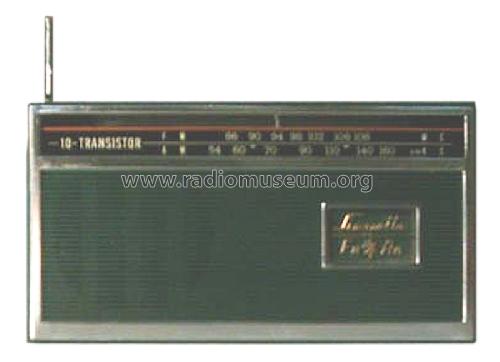

J_GR920(Simonetta)_front2
J_GR920(Simonetta)_inside
J_GR920 (Simonetta)_rear
Bild von Manfred Horst.
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); 3 AF stage(s); none
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / UM3: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Simonetta GR-920 - QUELLE GmbH Universum; Fürth
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 190 x 102 x 48 mm / 7.5 x 4 x 1.9 inch
- Notes
-
Modell Simonetta GR-920 wurde hergestellt von The Global Mfg. Co. (Global Electronic Mfg. Co.), Japan, für Quelle GmbH, Fürth/Nürnberg.
Siehe auch Global GR-920.
with carrying case, Tone control
- Net weight (2.2 lb = 1 kg)
- 0.680 kg / 1 lb 8 oz (1.498 lb)
- Source of data
- Historische Radios Band I
- Author
- Model page created by Manfred Horst. See "Data change" for further contributors.
