• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154646

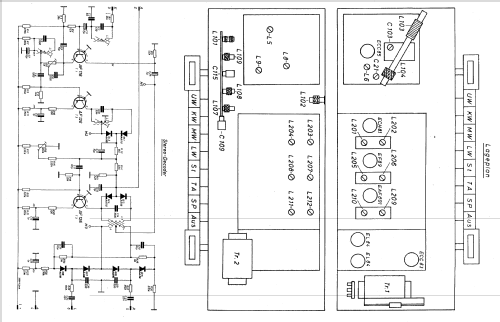

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EAF801 ECC83 EL84 EL84 EMM803

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Simonetta-Multiplex-Vollstereo-Luxus-Super K623 Art. Nr. 07589 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel, low profile (big size).

• Notes
• Mit FM Stereo Decoder Typ 52941 Art Nr 75254.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Holger Ortmann. See "Data change" for further contributors.
