• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155873

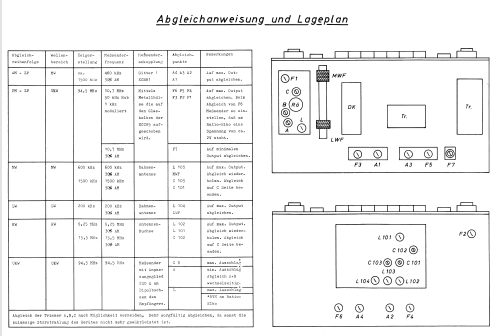

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86 EM84

• Number of Transistors

• Semiconductors
• OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Simonetta-Mittelsuper W227 Art. -Nr. 07541 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel with Push Buttons.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Thomas Günzel † 1.8.22. See "Data change" for further contributors.
