Simonetta Nautilus BN51 Artikel Nr. 09251
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1965
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 83267
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Line / Batteries (any type) / 220 / 6 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Simonetta Nautilus BN51 Artikel Nr. 09251 - QUELLE GmbH Universum; Fürth
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 280 x 100 x 250 mm / 11 x 3.9 x 9.8 inch
- Notes

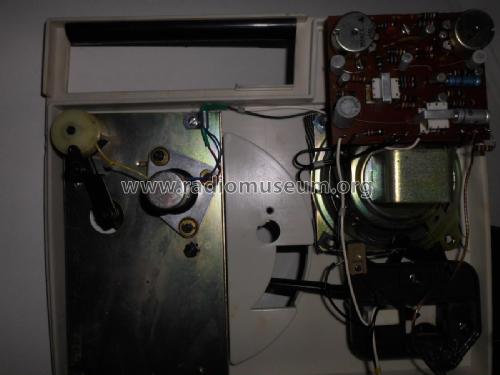

- Simonetta Nautilus BN51 vom Versandhaus Quelle ist ein kleiner tragbarer Plattenspieler mit 2 Geschwindigkeiten, 33/45 Upm. Der eingebaute NF-Verstärker ist mit Germanium-Transistoren bestückt.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
