• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158371

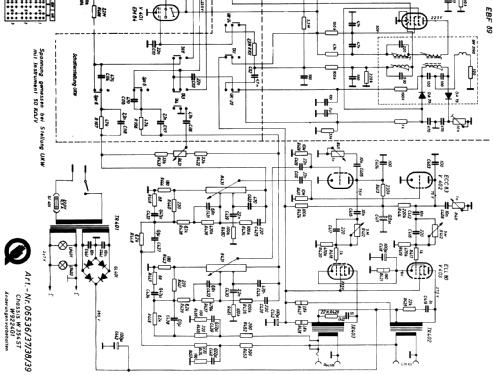

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 15.5 cm = 6.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Simonetta-Vollstereo-Konzertschrank Art.-Nr. 06536 & 06537 Ch= W354ST - QUELLE GmbH Universum; Fürth

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• 2 Ausführungen:
  Art.-Nr. 06536 Konzertschrank dunkel;
  Art.-Nr. 06537 Konzertschrank hell;

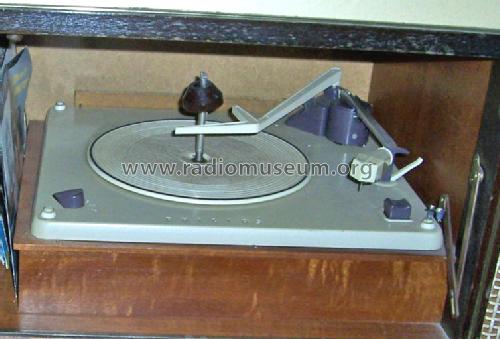

  Plattenwechsler Philips NG1300 oder AG1025.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
