• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 262175

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ELL80

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

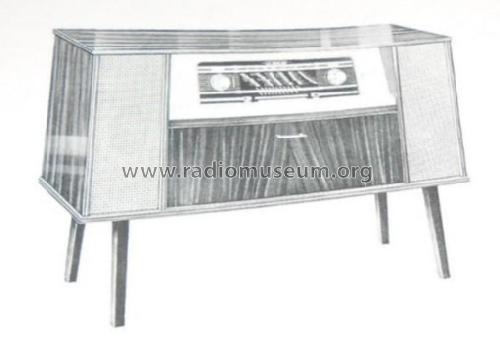

• Model: Simonetta Vollstereo Konzertschrank Bestellnummer 06528 - QUELLE GmbH Universum; Fürth

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1050 x 830 x 375 mm / 41.3 x 32.7 x 14.8 inch

• Notes

• 2 x 2 W.

  Eingebauter Philips Stereoplattenwechsler NG 1300.

• Price in first year of sale
• 425.00 DM

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by a member from A. See "Data change" for further contributors.
