Simonetta-Multiplex-Stereo W324 Art.-Nr. 07566 W3334G2
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 94247
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 1
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

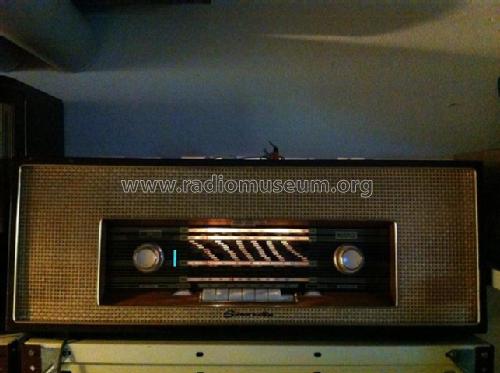

- Model: Simonetta-Multiplex-Stereo W324 Art.-Nr. 07566 W3334G2 - QUELLE GmbH Universum; Fürth
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 780 x 280 x 210 mm / 30.7 x 11 x 8.3 inch
- Net weight (2.2 lb = 1 kg)
- 12.8 kg / 28 lb 3.1 oz (28.194 lb)
- Source of data
- -- Collector info (Sammler)

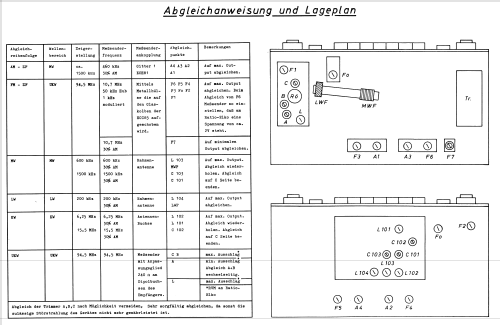

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Manfred Januschowski. See "Data change" for further contributors.
