• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111019

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• AF106 AF121 AF136 AF126 AF137 AF137 BC172 BC172 AC117 AC175 BC171 BC171

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

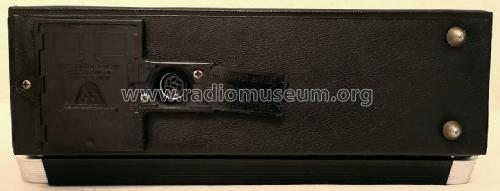

• Model: Universum TR784 Best. Nr. 09752 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Anschlüsse: Autoantenne, Tonband oder Plattenspieler, Autobatterie oder Netzteil.
  4 UKW Fixtasten.
  Erzeugt von Südfunk - Apparatebau, siehe auch Modell Portable 1011924.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 245.00 DM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
