Universum (4 Wellen-Heimradio) 4685

QUELLE GmbH (Universum); Fürth und Nürnberg

Data
Forum
Pictures
Collections

  • Year
  • 1979 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 75866

 Technical Specifications

  • Number of Transistors
  • 1
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Universum 4685 - QUELLE GmbH Universum; Fürth
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 532 x 130 x 165 mm / 20.9 x 5.1 x 6.5 inch
  • Notes

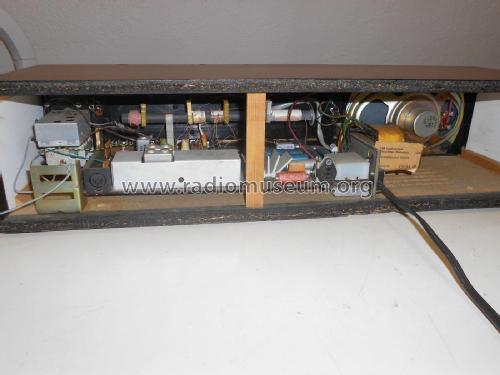

  • Chassis Vom VEB Hochfrequenzwerk Meuselwitz - Monomittelsuper aus der DDR.

    Lautsprecher Tesla ARE4604.

    Input Recorder and  Phono. Output for loudspeaker 4/8 Ω.

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Alexander Schmitz. See "Data change" for further contributors.
