Universum BSG3272
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1977–1979
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 71977
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver; ZF/IF 455 kHz
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Storage and/or dry batteries / 8x1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Universum BSG3272 - QUELLE GmbH Universum; Fürth
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 200 x 70 x 55 mm / 7.9 x 2.8 x 2.2 inch
- Notes
-

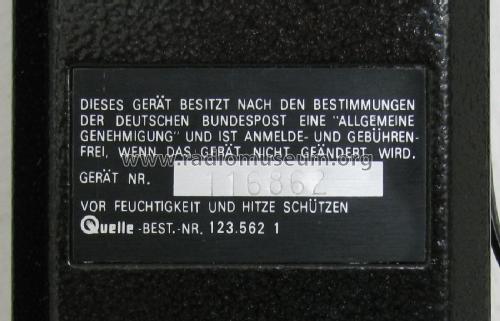

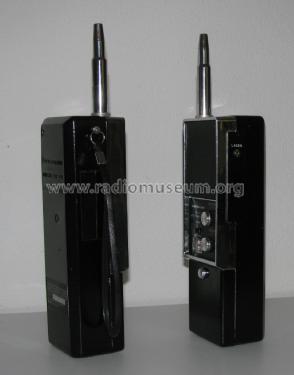

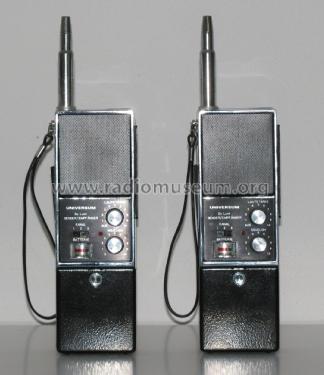

Dreikanal-AM-Handfunkgerät (27 MHz), mit Squelch und Batterieüberwachungsinstrument, Teleskoplänge 160 cm. FTZ-Zulassungsnummer PR-27-326P/77.
Der Preis wurde anfangs auf 129,- DM und später noch auf 99,- DM reduziert.
Platine und Blechgehäuse sind baugleich mit dem Transceiver 27 MHz BT-2304 de Luxe der Marke Brilliant. Das Herstellerland war Taiwan. Das BSG 3272 wurde mit einer geänderten Frontplatte versehen (die Lage der Bedienelemente, Batt. Anzeige und LED sind identisch) und mit FTZ Zulassung in Deutschland vertrieben.
- Net weight (2.2 lb = 1 kg)
- 1.4 kg / 3 lb 1.3 oz (3.084 lb)
- Price in first year of sale
- 149.00 DM
- Source of data
- -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by a member from D. See "Data change" for further contributors.
