• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86623

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 1S188 1S188 1S188 1S188 DS-17 2SA101 2SB185 2SB187 2SC537 2SC930 2SC930 2SC930 2SC930 2SC930 2SD187

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

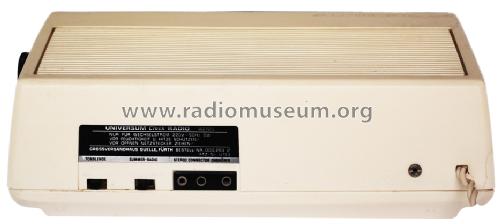

• Model: Universum Clock Radio W2720 Best. Nr. 000.283-2 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 270 x 85 x 170 mm / 10.6 x 3.3 x 6.7 inch

• Notes

• Gerät in weiß unter Bestell-Nr. 00283 erhältlich für 138,- DM, holzfarben unter Bestell-Nr. 02629 für 148,- DM

• Price in first year of sale
• 138.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert (Quelle Katalog 1973)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Winkler. See "Data change" for further contributors.
