Universum CT2745

• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1976/1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 111816

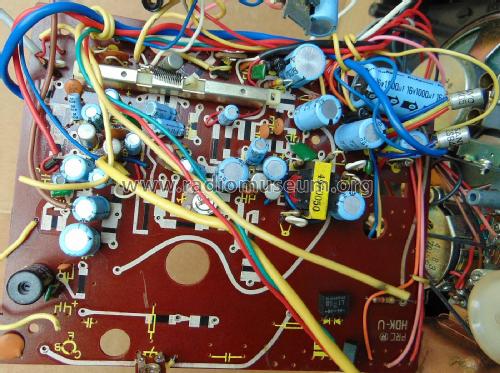

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Universum CT2745 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 77 x 270 mm / 8.3 x 3 x 10.6 inch

• Notes
• Transistoren (teilweise mehrfach): 2SA202, 2SB186, 2SB22, 2SB303, 2SB405. 6 Dioden.

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Price in first year of sale
• 149.00 DM

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Rudolf HEINZ. See "Data change" for further contributors.
