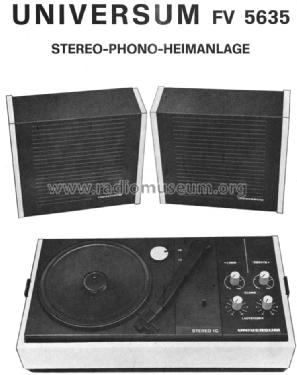

Universum IC Stereo-Phonoanlage FV-5635
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1975 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 171245
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt

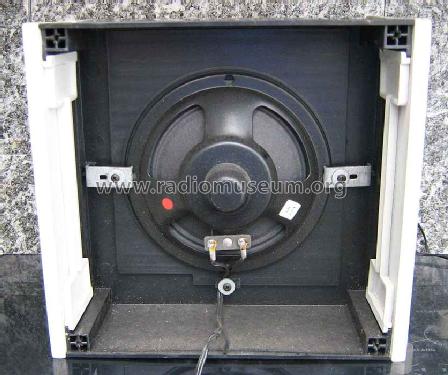

- Loudspeaker
- 2 Loudspeakers / Ø 13 cm = 5.1 inch
- Power out
- 1.5 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Universum IC Stereo-Phonoanlage FV-5635 - QUELLE GmbH Universum; Fürth
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 385 x 110 x 207 mm / 15.2 x 4.3 x 8.1 inch
- Notes
- 33 1/3 und 45 U/min, Kristallsystem, Mikrosaphir 7µ, 2 Lautsprecherboxen 8Ω 2,5W im Lieferumfang.
- Net weight (2.2 lb = 1 kg)
- 3.2 kg / 7 lb 0.8 oz (7.048 lb)
- Price in first year of sale
- 99.00 DM
- Author
- Model page created by Heribert Jung. See "Data change" for further contributors.
