• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90870

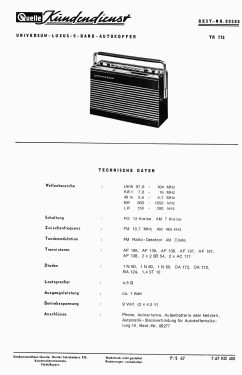

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF135 AF136 AF137 AF137 AF138 2SB54 2SB54 AC117 AC117 BA124 1N60 1N60 1N60 OA172 OA172 1,4-St10

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

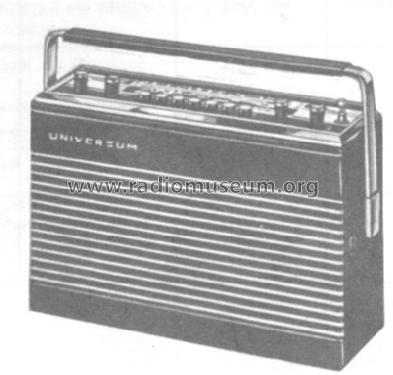

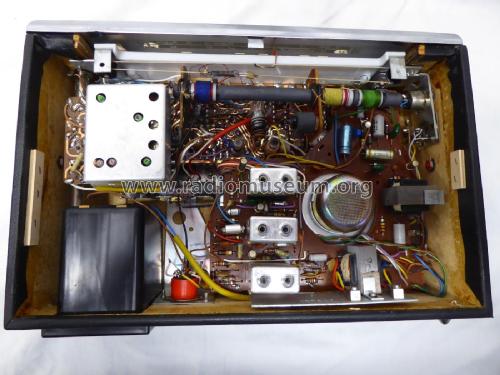

• Model: Universum Luxus-5 Band-Autokoffer TR773 Art.-Nr. 09385 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Tastenfolge: Licht LW MW AFC 49m KW UKW
  Hersteller: Südfunk-Werke für Quelle GmbH

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Ilja Liebisch. See "Data change" for further contributors.
