• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1970/1971

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 185605

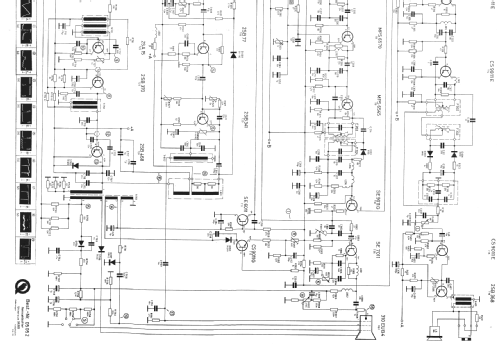

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 310EUB4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 220/12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Universum SK-2605 Bestell Nr. 05052 - QUELLE GmbH Universum; Fürth

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 361 x 324 x 308 mm / 14.2 x 12.8 x 12.1 inch

• Notes

• Quelle Universum Fernsehkoffer SK 2605; 31 cm s/w mit CCIR/VHF und UHF Tuner.
  35/18 W Leistungsaufnahme.

  Siehe auch Kapsch Viennastar 500 Portable

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Literature/Schematics (1)
• Original Quelle Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
