• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1974/1975 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 314491

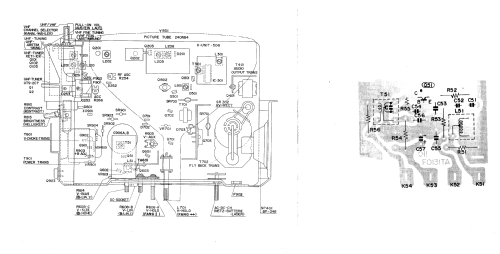

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 240NB4

• Number of Transistors
• 24

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Universum SK-2622 Best.Nr. 01233, 02612, 02613 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 295 x 210 x 230 mm / 11.6 x 8.3 x 9.1 inch

• Notes

• Tragbares S/W Transistor-Fernsehgerät, 24 Transistoren, 19 Dioden, 1 IC, VHF-Trommeltuner und UHF-Tuner für CCIR B/G Norm; Betrieb am Netz, an 12 V-Autosteckdose oder separatem 12 V-Akku.

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• Price in first year of sale
• 348.00 DM

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Andreas Echtner. See "Data change" for further contributors.
