• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1975 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110843

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 33

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 32 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

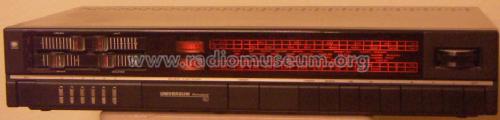

• Model: Universum Stereo Steuergerät VT2355 - QUELLE GmbH Universum; Fürth

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 620 x 115 x 320 mm / 24.4 x 4.5 x 12.6 inch

• Notes
• 6 ICs, 58 Dioden.

• Net weight (2.2 lb = 1 kg)
• 8.4 kg / 18 lb 8 oz (18.502 lb)

• Price in first year of sale
• 498.00 DM

• Source of data
• - - Data from my own collection
