• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 267422

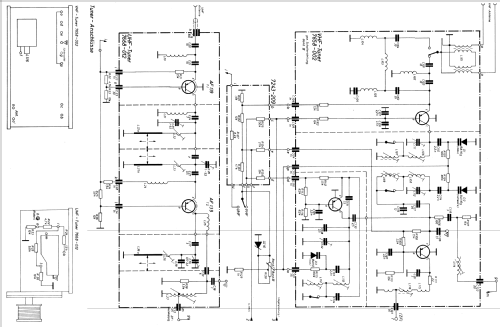

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EF85 PFL200 EL95 PCH200 PCL85 PCF802 PL500 PY88 DY86 A59-11W

• Number of Transistors
• 9

• Semiconductors
• AF109 AF106 AF106 AF139 AF139 AF121 AF121 AF121 BFY39

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

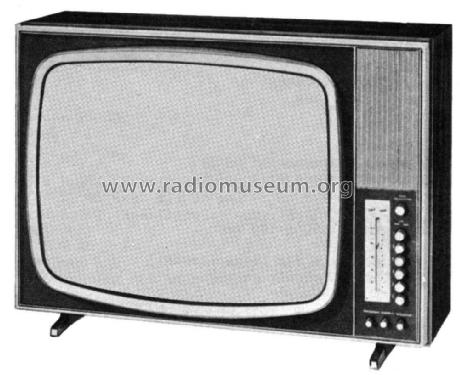

• Model: Universum T59-33 Best. Nr. 03639 / 03640 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel, low profile (big size).

• Notes

• Das Gerät gab es in 2 verschiedenen Gehäusefarben.
  Die Bestell-Nummern waren 0 36 39 und 0 36 40.
  Unter der Best.-Nr. 19381 gab es einen Fernbedienung zu diesem Gerät.

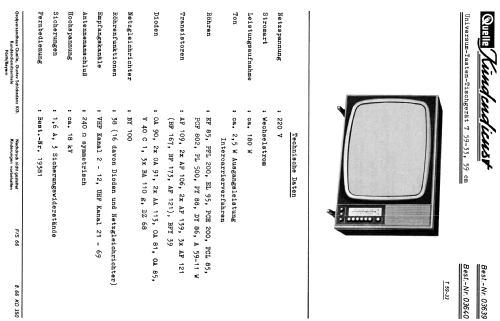

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
