• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1974 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194454

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage

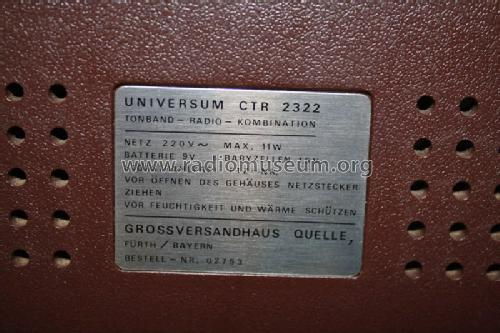

• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

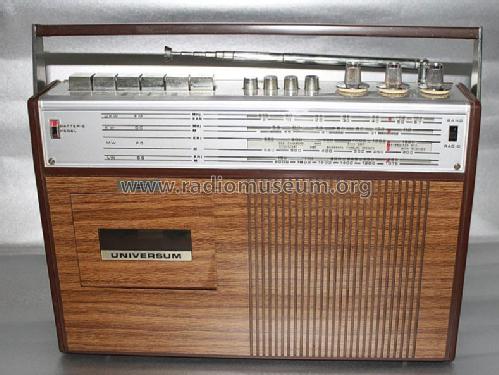

• Model: Universum Tonband-Radio-Kombination CTR-2322 & CTR2334 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 330 x 270 x 80 mm / 13 x 10.6 x 3.1 inch

• Notes

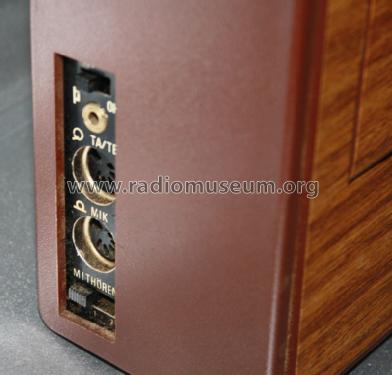

• Mikrofon und Kopfhörer Anschluss, Anzeigeinstrument, Tonregler.

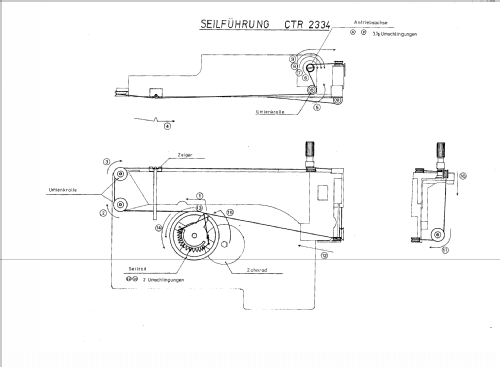

• Literature/Schematics (4)

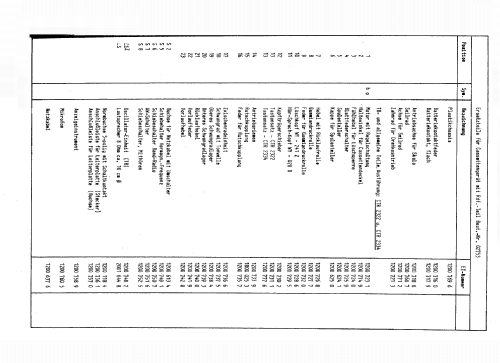

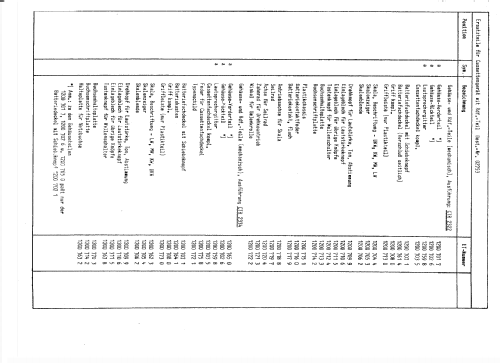

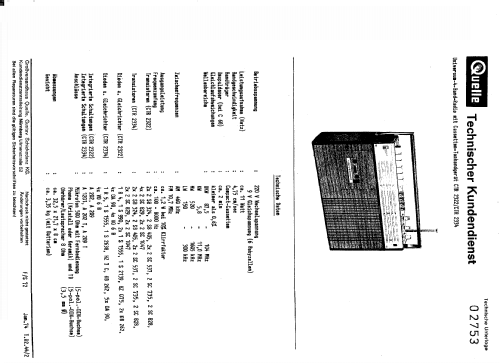

• -- Original-techn. papers.

• Author
• Model page created by Philip Obetsanov. See "Data change" for further contributors.
