• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 172744

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

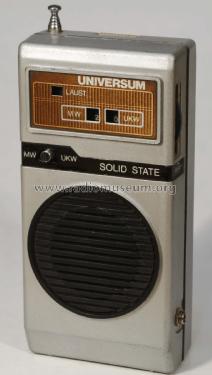

• Model: Universum TR1575 - QUELLE GmbH Universum; Fürth

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 70 x 143 x 37 mm / 2.8 x 5.6 x 1.5 inch

• Notes
• UKW 87,5-104 MHz (Teleskopantenne)
  MW 520-1605 kHz (Ferritantenne).

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Klaus Ortwein. See "Data change" for further contributors.

• Other Models

• Here you find 1084 models, 908 with images and 507 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from QUELLE GmbH (Universum); Fürth und Nürnberg
