• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1962 ?

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 280002

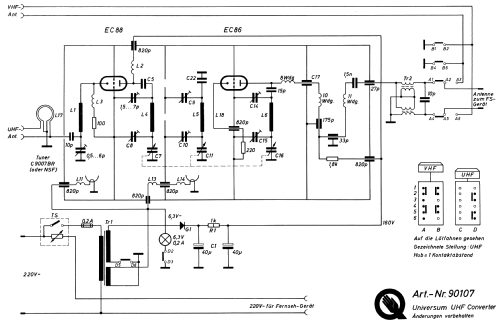

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• EC88 EC86

• Main principle
• RF Converter/Adapter (not voltage converter)

• Wave bands
• Wave Bands given in the notes.

• Details
• Converter

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Universum UHF-Converter 90107 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

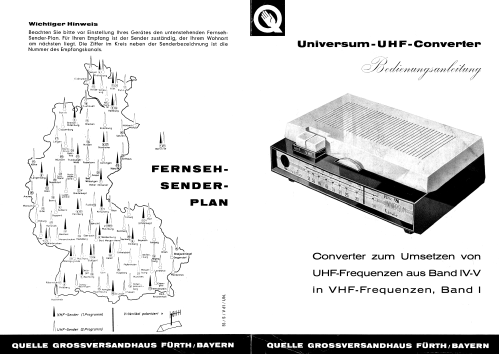

• Universum-UHF-Converter; Großversandhaus Quelle Füth/ Bayern.
  Converter zum Umsetzen von UHF-Frequenzen aus Band IV-V in VHF-Frequenzen, Band I.
  Quelle-Art.-Nr. 90107.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
