Universum Volltransistor TR 3041
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1972 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 337938
- Number of Transistors
- 5
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Universum Volltransistor TR 3041 - QUELLE GmbH Universum; Fürth
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 73 x 117 x 37 mm / 2.9 x 4.6 x 1.5 inch
- Notes
-

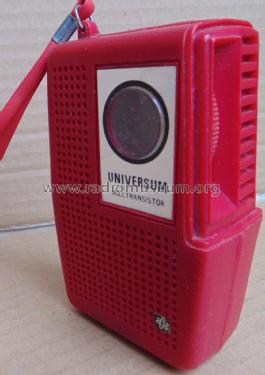

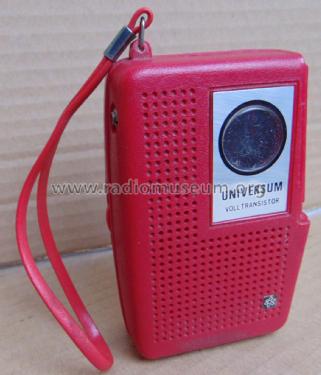

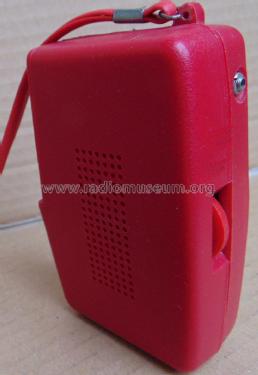

Universum Volltransistor TR 3041, Taschenempfänger mit Trageschlaufe, für Mittelwellen-Empfang. Trafoloser (OTL) NF-Verstärker. Ohrhörer-Anschluss.
Siehe auch Universum Volltransistor TR1725 im horizontalem Design, jedoch mit trafogekoppeltem NF-Verstärker.
- Net weight (2.2 lb = 1 kg)
- 0.155 kg / 0 lb 5.5 oz (0.341 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
