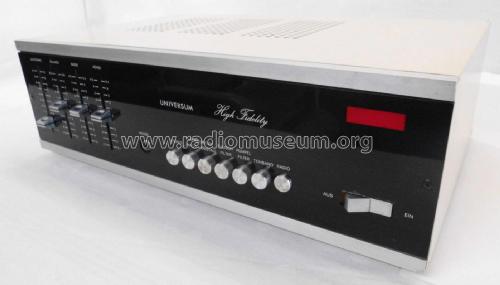

Universum V716
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1971/1972
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 162720
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 22
- Main principle
- Audio-Amplification
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 70 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Universum V716 - QUELLE GmbH Universum; Fürth
- Shape
- Book-shelf unit.
- Notes
- Quelle Universum V716;

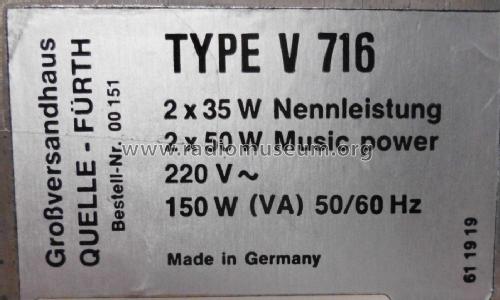

Stereo-Verstärker, 2 x 35 W Sinusleistung an 4 Ohm, 2 x 22 W an 8 Ohm.
2 x 50 W Musikleistung. Kopfhörer-Ausgang an 6,3 mm Klinkenbuchse.
Transistoren 1 x pro Typ gelistet.
- Author
- Model page created by Eberhard Franzke. See "Data change" for further contributors.
