- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1974 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 188940
Quelle Servicemanual 00193 / 00273
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 6 W (unknown quality)
- from Radiomuseum.org

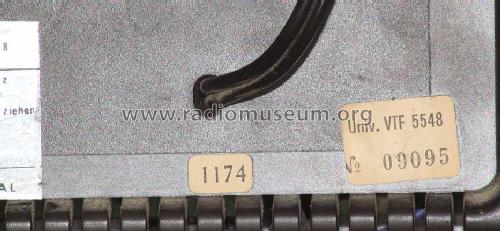

- Model: VTF5548 - QUELLE GmbH Universum; Fürth
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 482 x 119 x 132 mm / 19 x 4.7 x 5.2 inch
- Notes
- Kombination: Stereo-Receiver mit Plattenspieler und Lautsprecher-Boxen.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
