• Country
• United States of America (USA)

• Manufacturer / Brand
• Radiart Laboratories Co.; Chicago, IL

• Year
• 1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 52373

• • Brand: Magnaformer

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX201A UX201A UX201A UX112 UX171

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

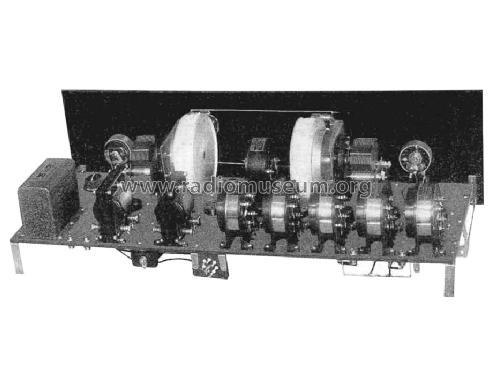

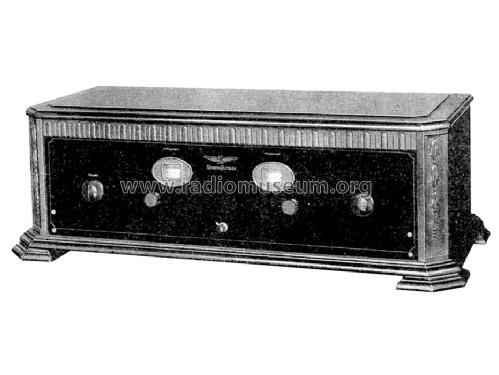

• Model: Magnaformer 9-8 - Radiart Laboratories Co.;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• Two dials (primary tuning control knobs)

• Price in first year of sale
• 200.00 $

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• -- Original prospect or advert (New Radio Buyer's Guide, 1927-28 Edition, Barawik)

• Author
• Model page created by Peter Rutishauser. See "Data change" for further contributors.
