- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Craftsmen Inc., The; Chicago (IL)
- Year
- 1952/1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 133581

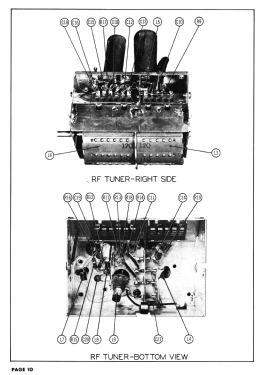

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 6BQ7 or 6BZ7 6J6 6CB6 6CB6 6CB6 6CB6 6AL5 6AU6 6AQ5 or 6AR5 6AU6 6AU6 6AU6 6AU6 6AL5 6AL7GT 6AU6 6C4 6W6GT 6W6GT 6BF6 12AU7 6SN7GT 6BL7GT 6AL5 12AU7 6BQ6GT 6W4GT 1B3GT 17HP4 or 21FP4 or 24BP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: 202 - Radio Craftsmen Inc., The;
- Shape
- Chassis only or for «building in»
- Notes
-
Radio Craftsmen model 202 is a b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 25B050 and picture tube 17HP4 or 21FP4 or 24BP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 184, folder 13, dated 11-52)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
